Uniset Element for WC with EPS housing
Product Number
38643001
EAN
4005176865411
Product Description
- with flushing cistern GD 2, 6 - 9 l
- sound-insulating EPS module for masonry-in
- 830 x 470 x 130 mm
- rail adaptors for modular fixing
- for single or rail installation
- wall rail with fixing accessories for single
installation - 2 WC fixing bolts
- distance of fixing bolts 180/230 mm
- fixing device for ceramic
- outlet bend Ø 90 mm
- depth adjustable
- reducer Ø 90/110 mm
- inlet and outlet connecting set
- flushing cistern GD 2, 6 - 9 l, containing following features:
- adjustment ex factory 6l and 3l
- pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush
- water supply from left/right/back or top
- low noise (group I acc. to
German Noise Specification) - insulated against condensation
- ½" water supply connection including integrated
angle valve and push fit flexible hose union - for vertical or horizontal use
- no tools required for the installation
of the inspection shaft incl. protection
during construction phase - preparation for shower toilets with additional accessory 40 899 000 (sold separately)
- for mounting of small flush plates please order
revision shaft 40 911 000 (sold separately)
Technical Information
CAD Data
Units per package

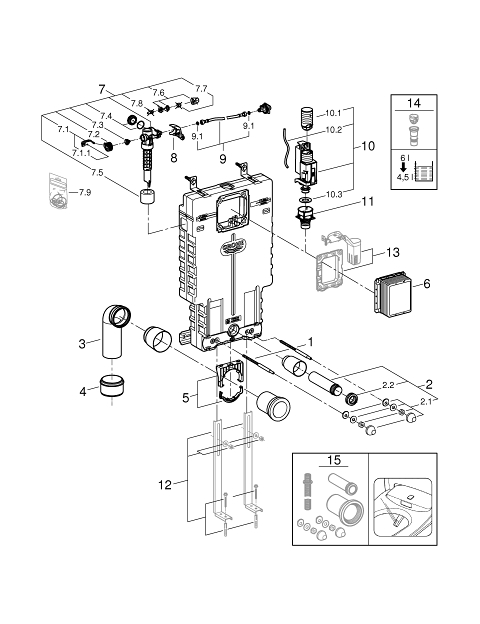

| Pos.-nr. | Prod. Description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Threaded bolt | 4276400M |
| 2 | WC inlet and outlet connecting set | 37311K00 |
| 2.1 | Basin fastening | 43511SH0 |
| 2.2 | Connector | 37119000 |
| 3 | PP-outlet bend Ø 90 mm | 42327000 |
| 4 | Reducer | 42242000 |
| 5 | Support for outlend bend | 42243000 |
| 6 | Inspection shaft | 66783000 |
| 7 | Filling valve | 37095000 |
| 7.1 | Lever | 43734000 |
| 7.1.1 | Seal | 4377000M |
| 7.2 | Valve head | 43536000 |
| 7.3 | Membrane | 4375800M |
| 7.4 | Screw cap | 43735000 |
| 7.5 | Valve float, 5 pcs. | 4379100M |
| 7.6 | Dummy plug and escutcheon cap | 37125000 |
| 7.7 | Compression nut | 43258000 |
| 7.8 | Throttle | 42356000 |
| 7.9 | Set of seals | 43722000* |
| 8 | Support device | 42246000 |
| 9 | Connecting hose | 42233000 |
| 9.1 | Sealing washer | 0319100M |
| 10 | Dual Flush discharge valve AV1 | 42320000 |
| 10.1 | Extension for overflow pipe | 42313000 |
| 10.2 | Pneumatic hose | 42319000 |
| 10.3 | Seal | 42310000 |
| 11 | Valve seat for GD2 | 42315000 |
| 12 | Support feet | 37304000* |
| 13 | GROHE Fresh retrofit set | 38796000* |
| 14 | 4.5 l adapter for GD2 | 42333000* |
| 15 | Retrofit kit for shower toilets Sensia Arena and IGS | 40899000* |
