Rapid SL project Element for WC, 1.13 m installation height
With sustainnable impact. Learn more at green.grohe.com.
The GROHE Rapid SL installation system with certified load-bearing capacity and water-saving feature
Choose an installation system for your wall-hung toilet that offers the best in safety, convenience and strength – the GROHE Rapid SL installation system for wall-hung toilets. The steel frame is certified to hold loads of over 400 kg for ultimate stability and it can be installed in front of a solid wall or stud wall in next-to-no-time thanks to the GROHE QuickFix system. The GROHE EcoJoy dual flush system is kinder to the environment, reducing water consumption by up to 50%. Choose from over 130 attractive flush plate designs to go with the system. Noise transmission to the building is kept to a minimum thanks to GROHE Whisper technology, engineered with low-noise fittings and separate plumbing. To install this product, please purchase the 3855800M wall brackets.
- with flushing cistern GD 2, 6 - 9 l
- for on-the-wall installations or studded walls
- powder coated steel frame, self-supporting
- for dry-cladding
- with fixed connections
- quick adjustment, lockable
- fixing material
- 2 WC fixing bolts
- fixing device for ceramic
- distance of fixing bolts 180/230 mm
- outlet bend Ø 90 mm
- depth adjustable
- reducer Ø 90/110 mm
- inlet and outlet connecting set
- flushing cistern GD 2, 6 - 9 l, containing following features:
- adjustment ex factory 6l and 3l
- pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush
- water supply from left/right/back or top
- low noise (group I acc. to German Noise Specification)
- insulated against condensation
- ½" water supply connection including integrated angle valve and push fit flexible hose union
- no tools required for the installation of the inspection shaft incl. protection during construction phase
- for vertical or horizontal use
- for on-the-wall installation please order wall brackets 38 558 00M (sold separately)
- for mounting of small flush plates please order revision shaft 40 911 000 (sold separately)
CAD Data

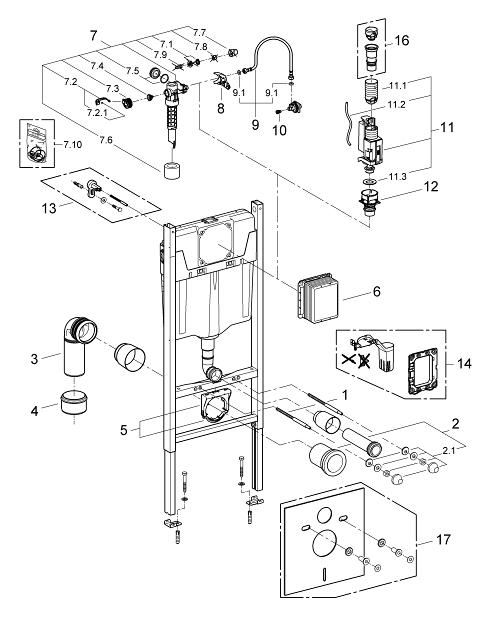

| Pos.-nr. | Prod. Description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Threaded bolt | 4276400M |
| 2 | WC inlet and outlet connecting set | 37311K00 |
| 2.1 | Basin fastening | 43511SH0 |
| 2.2 | Connector | 37119000 |
| 3 | PP-outlet bend Ø 90 mm | 42327000 |
| 4 | 4" Outlet Adaptor F Rapid Sl | 42242000 |
| 5 | Support for outlet bend | 42243000 |
| 6 | Inspection shaft | 66791000 |
| 7 | Filling valve | 37095000 |
| 7.1 | Lever | 43734000 |
| 7.1.1 | Ball seal dia. 9x6.8 mm | 4377000M |
| 7.2 | Valve head | 43536000 |
| 7.3 | Membrane | 4375800M |
| 7.4 | Screw cap | 43735000 |
| 7.5 | Valve float, 5 pcs. | 4379100M |
| 7.6 | Repl. kit f. seal | 43722000* |
| 8 | Support device | 42246000 |
| 9 | Tube | 42233000 |
| 9.1 | Seat washer | 0319100M |
| 10 | Dual Flush discharge valve AV1 | 42320000 |
| 10.1 | Extension for overflow pipe | 42313000 |
| 10.2 | pneumatic hose | 42319000 |
| 10.3 | Ball seal dia. 9x6.8 mm | 42310000 |
| 11 | Valve seat for GD2 | 42315000 |
| 12 | Water Connection | 48561000 |
| 13 | Retrofit kit for shower toilets Sensia Arena and IGS | 40899000* |
| 14 | Set for noise protection | 37131000* |
| 15 | Xtra wall brackets, flexible placing | 38733000* |
| 16 | Accessory | 38779000* |
| 17 | 4,5 l Adapter for GD2 | 42333000* |
| 18 | Wall union | 3855800M* |
| 19 | Retro-fit set | 38796000* |
