Rapid SL 5-in-1 set for WC, 1.13 m installation height

Product Number
38827000
EAN
4005176870477
Colour2
chrome

Product Description

GROHE Rapid SL installation system – with GROHE Fresh and noise-reduction technology

The last word in fuss-free installation for your wall-hung toilet, this GROHE Rapid SL 4-in-1 installation set for wall-hung toilets is reliable and strong for total peace of mind. The steel frame is certified to hold loads of over 400 kg for ultimate stability and it can be installed in front of a solid wall or within a stud wall in next-to-no-time thanks to the GROHE QuickFix system, which requires no tools to connect hose, inspection shaft and water supply. The GROHE EcoJoy dual flush system is kinder to the environment, reducing water consumption by up to 50%. Noise transmission to the building is kept to a minimum thanks to GROHE Whisper technology, engineered with low-noise fittings and separate plumbing. The GROHE Fresh feature lets you to open the flush plate to insert toilet freshener tabs directly into the tank for increased bathroom hygiene. The set comes with wall brackets and an attractive Skate Cosmopolitan chrome flush plate.

  • with flushing cistern GD 2, 6 - 9 l
  • consists of:
  • Rapid SL element for WC (38 528 001)
  • Skate Cosmopolitan flush plate, chrome (38 732 000)
  • GROHE Fresh retro-fit set (38 796 000)
  • Rapid SL wall brackets (38 558 00M)
  • including WC set for noise protection (37 131 000)

Technical Information

CAD Data

Units per package

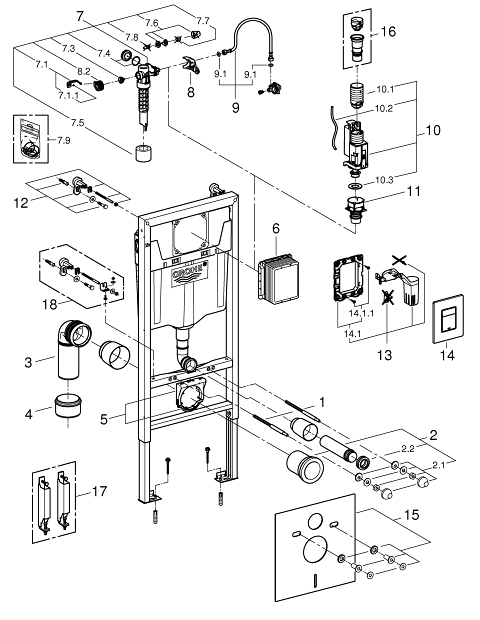

Pos.-nr. Prod. Description Order-nr.
* Optional accessories
1 Threaded bolt, 2 pcs. for Uniset 4276400M
2 WC inlet and outlet connecting set 37311K00
2.1 Basin fastening 43511SH0
2.2 Connector 37119000
3 PP-outlet bend Ø 90 mm 42327000
4 Reducer 42242000
5 Support for outlend bend 42243000
6 Inspection shaft 66791000
7 Filling valve 37095000
7.1 Lever 43734000
7.1.1 Seal 4377000M
7.2 Valve head 43536000
7.3 Membrane 4375800M
7.4 Screw cap 43735000
7.5 Valve float, 5 pcs. 4379100M
7.6 Dummy plug and escutcheon cap 37125000
7.7 Compression nut 43258000
7.8 Throttle 42356000
7.9 Set of seals 43722000*
8 Support device 42246000
9 Tube 42233000
9.1 Sealing washer 0319100M
10 Dual Flush discharge valve AV1 42320000
10.1 Extension for overflow pipe 42313000
10.2 Pneumatic hose 42319000
10.3 Seal 42310000
11 Valve seat for GD2 42315000
12 Rapid SL wall brackets 3855800M
13 GROHE Fresh retrofit set 38796000
13.1 Mounting frame 42358000
13.1.1 Screw 6636200M
14 Top plate with push button 42371000
15 Set for noise protection 37131000
16 4.5 l adapter for GD2 42333000*
17 Accessory 38779000*
18 Rapid SL mounting angle 38733000*
