Rapid SL 2-in-1 set for WC, 1.13 m installation height

Product Number
38763001
EAN
4005176863318
Colour2
chrome
  • with flushing cistern GD 2, 6 - 9 l
  • consists of:
  • Rapid SL element for WC (38 528 001)
  • Skate Air flush plate, chrome, vertical installation (38 505 000)

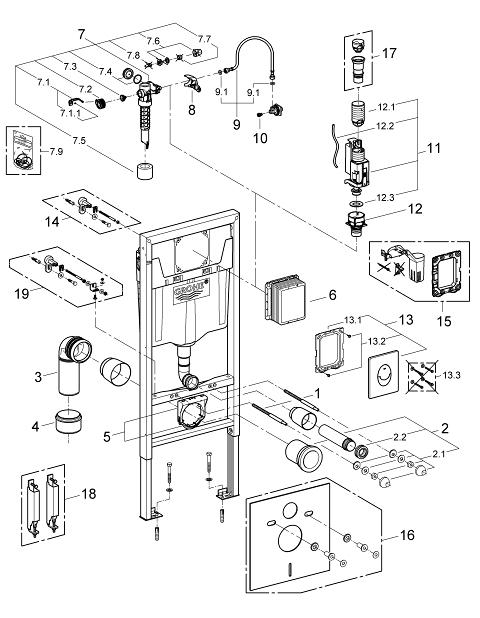

Pos.-nr. Prod. Description Order-nr.
* Optional accessories
1 Threaded bolt 4276400M
2 WC inlet and outlet connecting set 37311K00
2.1 Basin fastening 43511SH0
2.2 Connector 37119000
3 PP-outlet bend Ø 90 mm 42327000
4 4" Outlet Adaptor F Rapid Sl 42242000
5 Support for outlet bend 42243000
6 Inspection shaft 66791000
7 Filling valve 37095000
7.1 Lever 43734000
7.1.1 Ball seal dia. 9x6.8 mm 4377000M
7.2 Valve head 43536000
7.3 Membrane 4375800M
7.4 Screw cap 43735000
7.5 Valve float, 5 pcs. 4379100M
7.6 Repl. kit f. seal 43722000*
8 Support device 42246000
9 Tube 42233000
9.1 Seat washer 0319100M
10 Headpart 42385000
11 AV1 complete wiht pipe extension 42320000
11.1 Extension for overflow pipe 42313000
11.2 pneumatic hose 42319000
11.3 Ball seal dia. 9x6.8 mm 42310000
12 Valve seat for GD2 42315000
13 Wall plate 38505000
13.1 Screw dia. 4x52 mm 6636200M
13.2 Frame 43207000
13.3 Fixing set 4308500M*
13.4 Fixing set 4215800M*
14 Wall union 3855800M*
15 Retro-fit set 38796000*
16 Set for noise protection 37131000*
17 4,5 l Adapter for GD2 42333000*
18 Accessory 38779000*
19 Xtra wall brackets, flexible placing 38733000*
