Rapid SL 2-in-1 set for WC, 0.82 m installation height

Product Number
38948000
EAN
4005176911224
  • with flushing cistern 6 - 9 l
  • consists of:
  • Rapid SL element for WC (38 526 000)
  • wall brackets (38 558 00M)

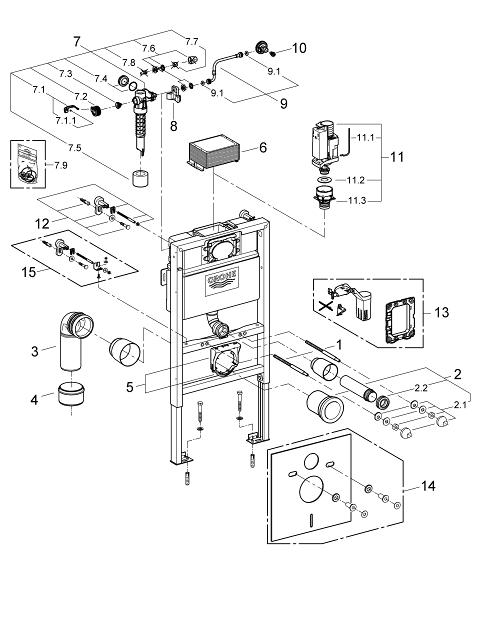

Pos.-nr. Prod. Description Order-nr.
* Optional accessories
1 Threaded bolt 4276400M
2 WC inlet and outlet connecting set 37311K00
2.1 Basin fastening 43511SH0
2.2 Connector 37119000
3 PP-outlet bend Ø 90 mm 42327000
4 4" Outlet Adaptor F Rapid Sl 42242000
5 Support for outlet bend 42243000
6 inspection shaft.for flushing cistern 42326000
7 Filling valve 37095000
7.1 Lever 43734000
7.1.1 Ball seal dia. 9x6.8 mm 4377000M
7.2 Valve head 43536000
7.3 Membrane 4375800M
7.4 Screw cap 43735000
7.5 Valve float, 5 pcs. 4379100M
7.6 Repl. kit f. seal 43722000*
8 Support device 42195000
9 Overflow Sleeve 43325000
9.1 Seat washer 0319100M
10 Discharge valve AV1 complete 42314000
10.1 pneumatic hose 42319000
10.2 Ball seal dia. 9x6.8 mm 42310000
10.3 Valve seat for GD2 42315000
11 Wall union 3855800M
12 Water Connection 48561000
13 Flow restrictor 42300000*
14 Retrofit kit for shower toilets Sensia Arena and IGS 40899000*
15 Set for noise protection 37131000*
16 Xtra wall brackets, flexible placing 38733000*
17 Extension 38629000*
18 Accessory 38779000*
19 Retro-fit set 38796000*
